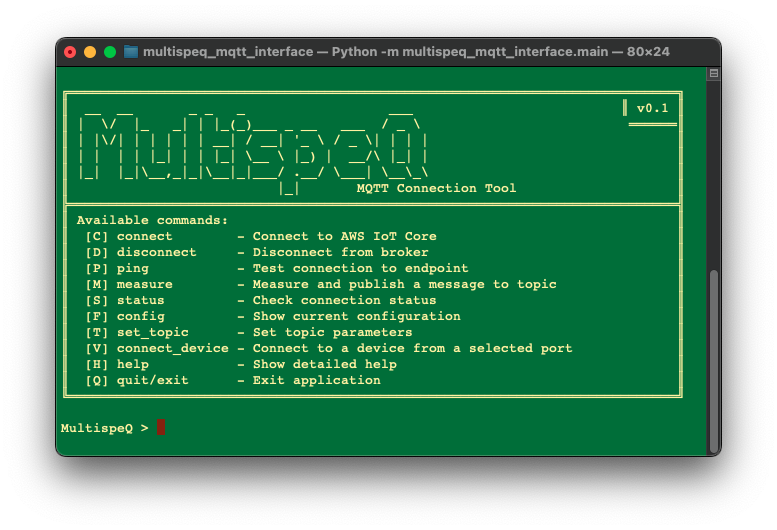

MultispeQ MQTT Tool

The MultispeQ MQTT Interface (MMI) is a Python command-line development tool under apps/tools/multispeq_mqtt_interface. It connects to AWS IoT Core with an X.509 certificate, takes a SPAD measurement through the JII MultispeQ library, and publishes JSON at MQTT QoS 1.

Intended use

Use MMI to develop and diagnose the device-to-cloud path with project-provided IoT credentials. It is not the researcher mobile workflow, a daemon, or a general MQTT administration client.

The current implementation is explicitly development-stage and has important constraints:

• it publishes measurements but does not subscribe to device-script or remote-control topics;
• publish, continuous_publish, and connect_device currently use the hard-coded macOS serial port /dev/cu.usbmodem42949672951;
• the measurement protocol is fixed to a single SPAD reading;
• runtime topic updates fix the sensor family/version/id to multispeq/v1.0/cli_test_sensor_id;
• configuration comes from process environment variables and prompts; the Python package does not load .env files itself;
• there are no implemented --debug, batch, JSON-input, or non-interactive CLI flags.

These corrections matter because earlier documentation described planned behavior as if it had shipped.

Data path

flowchart LR
  Q[MultispeQ] -->|serial + JII-MultispeQ| CLI[MMI CLI]
  CLI -->|mTLS, MQTT QoS 1| IOT[AWS IoT Core]
  IOT --> K[Kinesis]
  K --> D[Databricks centrum pipeline]

Continue with Installation and Usage. The platform-wide channel schema is in the generated MQTT API reference.
